Low Voltage Back

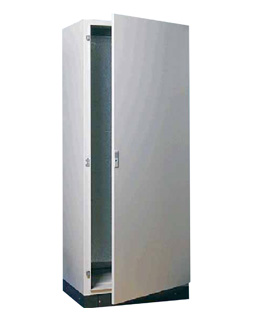

CME7 Series Metal Cabinet

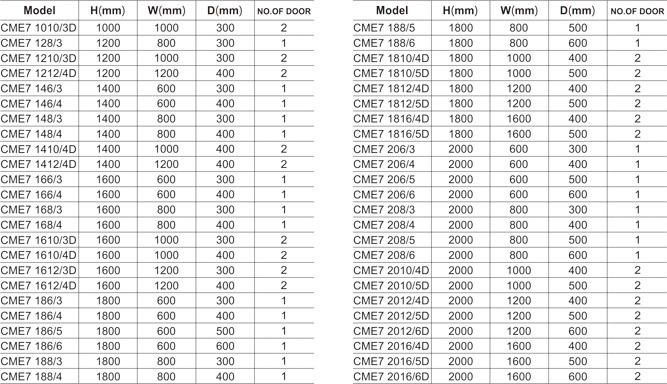

Technical Data
Metal cabinet Construction
Back and side panels manufactured in 1.5mm sheet steel.
Mounting plate manufactured in 2.5mm sheet steel.
Door manufactured in 2mm sheet steel with feinforcing frame.
The standard cycle thermosetting epoxy polyester powder coating.
Structure, door RAL 7035 textured finish.
Mounting plate: zinc coated.
Protection Degree
IP55 En60529 NEMA 12.
Supply Include
Back and side panels(structure)

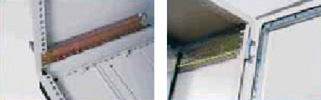

Mounting plate.(Also available without mounting plate)
4 Mounting plate supports.
Front door with reinforcing frame with.
4 hinges a 4 point locking system.
4 lifting eyebolts.
