Automatic Meter Reading (AMR) System & Remote Control System(SCADA)

Description:

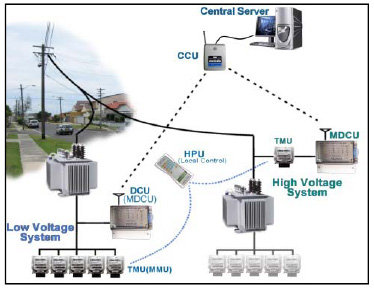

SUNFAD's Automatic Meter Reading (AMR) System is consisting of Host Central Station(HCS), Data Concentrator Units(DCU or DTU) and Meter Interfacing Units(MIU) built-in, or External in Electronic Digital Meter/mechanical Meter/Electronic, Mechanical meters of flexibility and expandability based on PLC(Low Voltage Power Line Communication Technology) for Low voltage Customers Downstream Communication of DCU is PLC technology, upstream communication of DCU(MDCU) is RF/GSM/GPRS/CDMA/2G/3G Internet network for low voltage customer AMR system. For High Voltage Customer AMR system, GSM/GPRS/CDMA/2G/3G network shall be adapted.
* Power loss analysis System and Remote Switching(optional)
SUNFAD's AMR system shall be able to provide analysis data of power loss based on each distribution transformer as AMR system operation software. Energy cheating detecting system shall be applicable with AMR system.
* Economical and Flexible Application
SUNFAD's AMR system shall be able to apply for the Existing Mechanical Meter with Internal PULSE GENERATOR, or External PULSE GENERATOR. Also Electronic Meter with Pulse Out

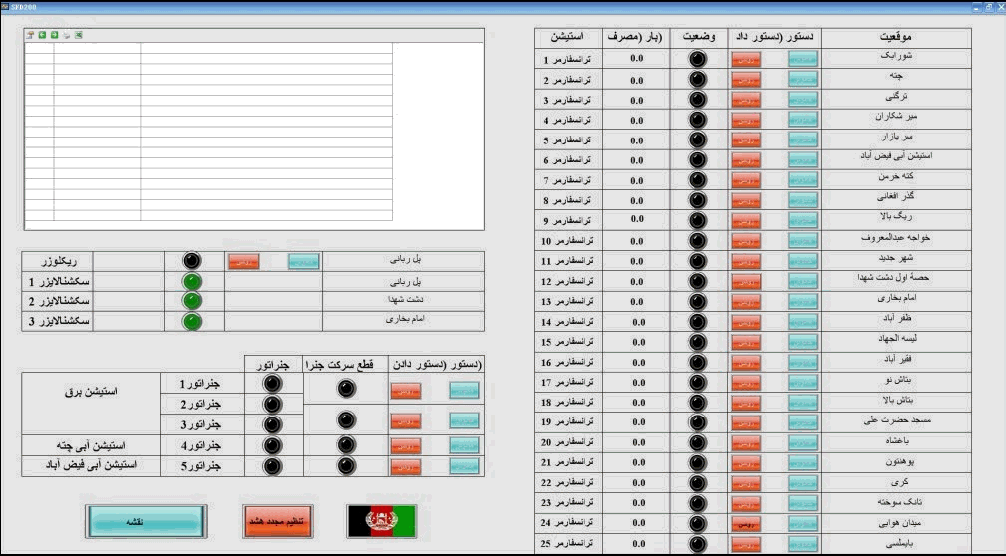

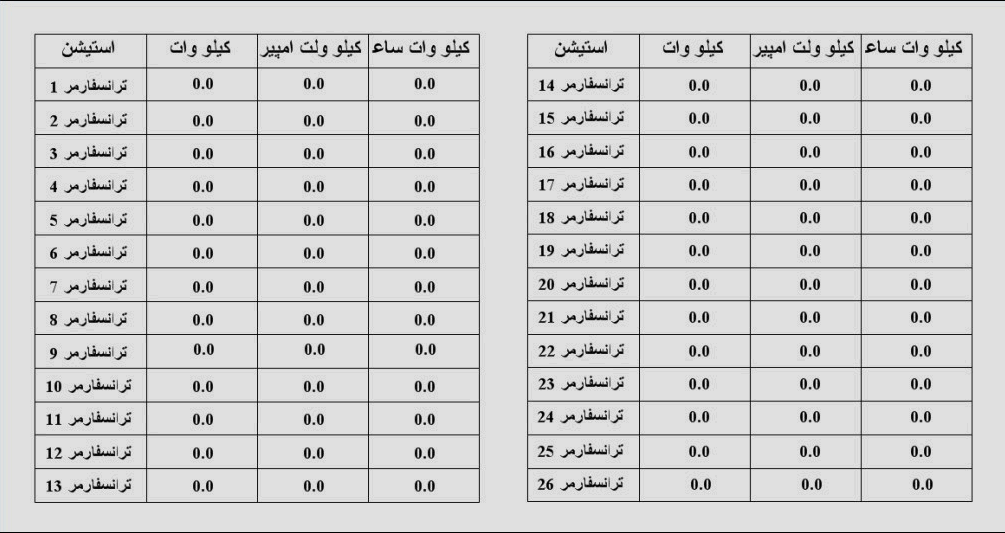

SUNFAD's Remote Control System can control many electrical equipments from any long distance in the view of any computer on the net line. All of the control software in the computer can be developed in any language in the world by our engineers.

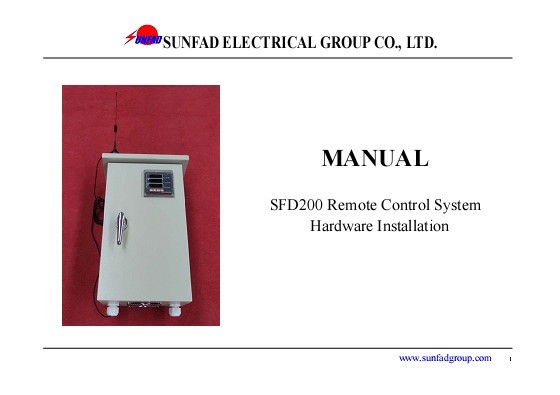

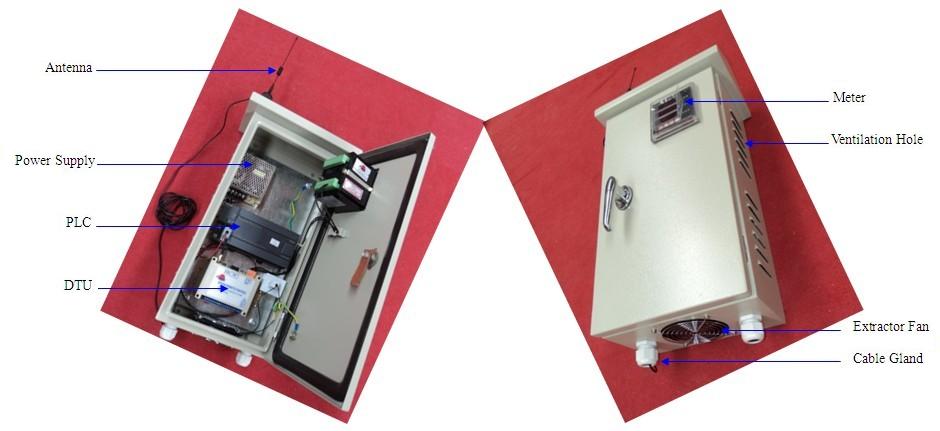

Hardware(Will be made by our group company according to the client's requirement):

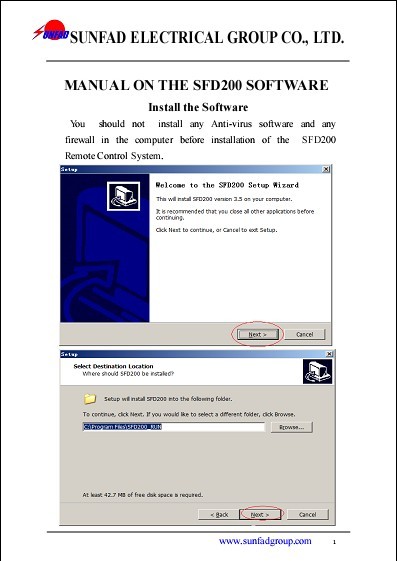

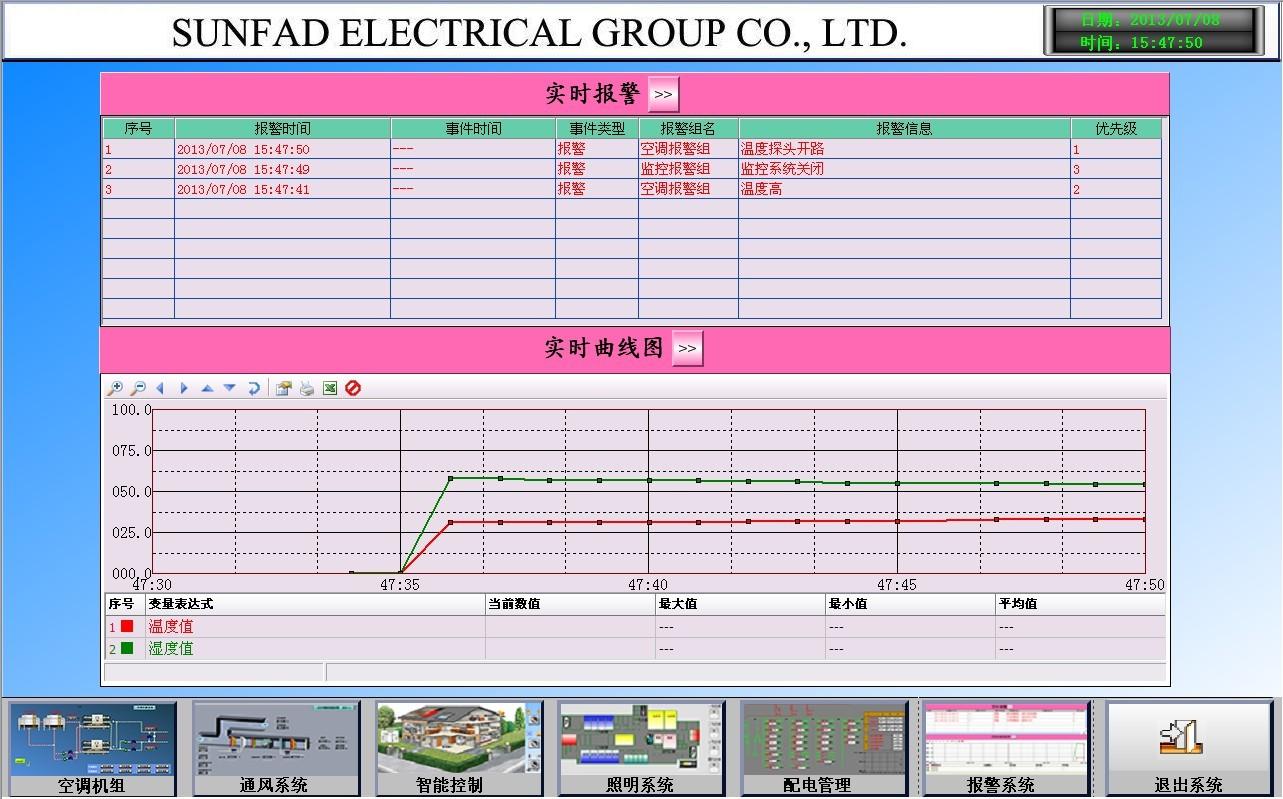

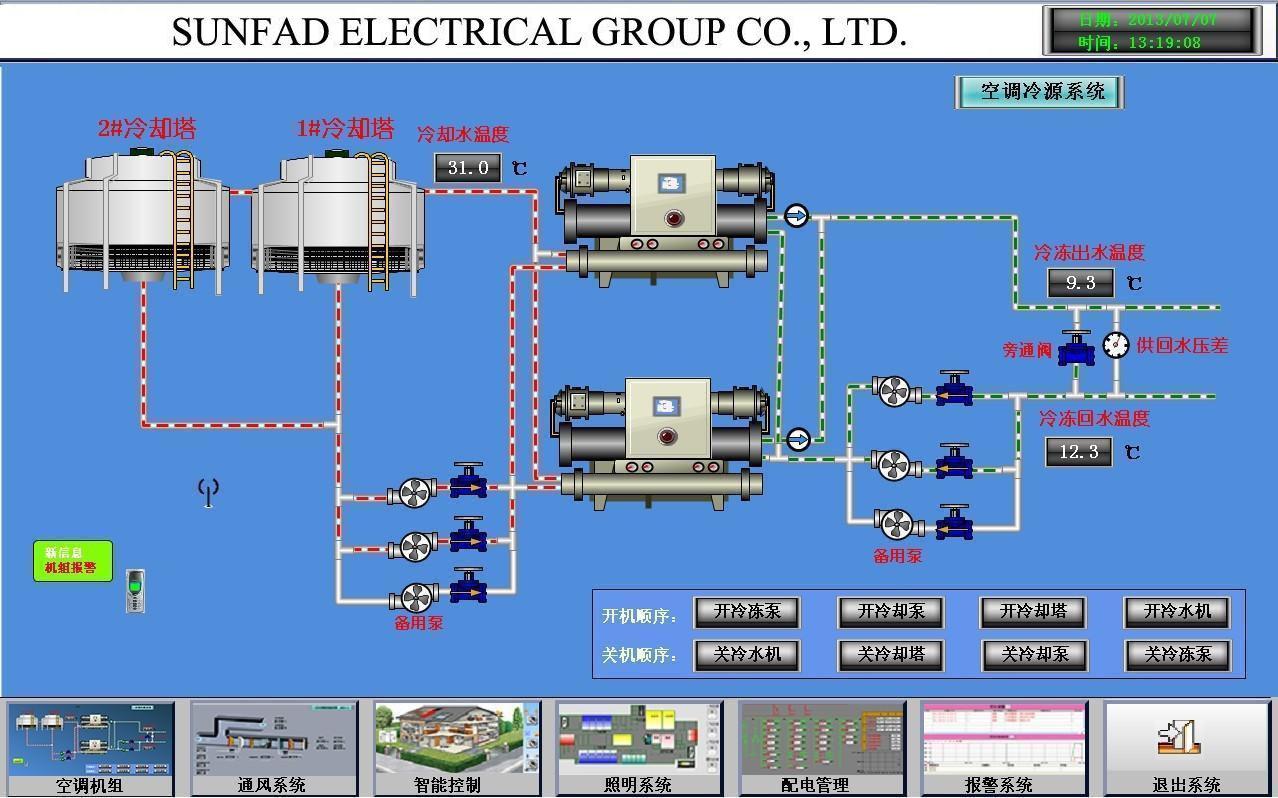

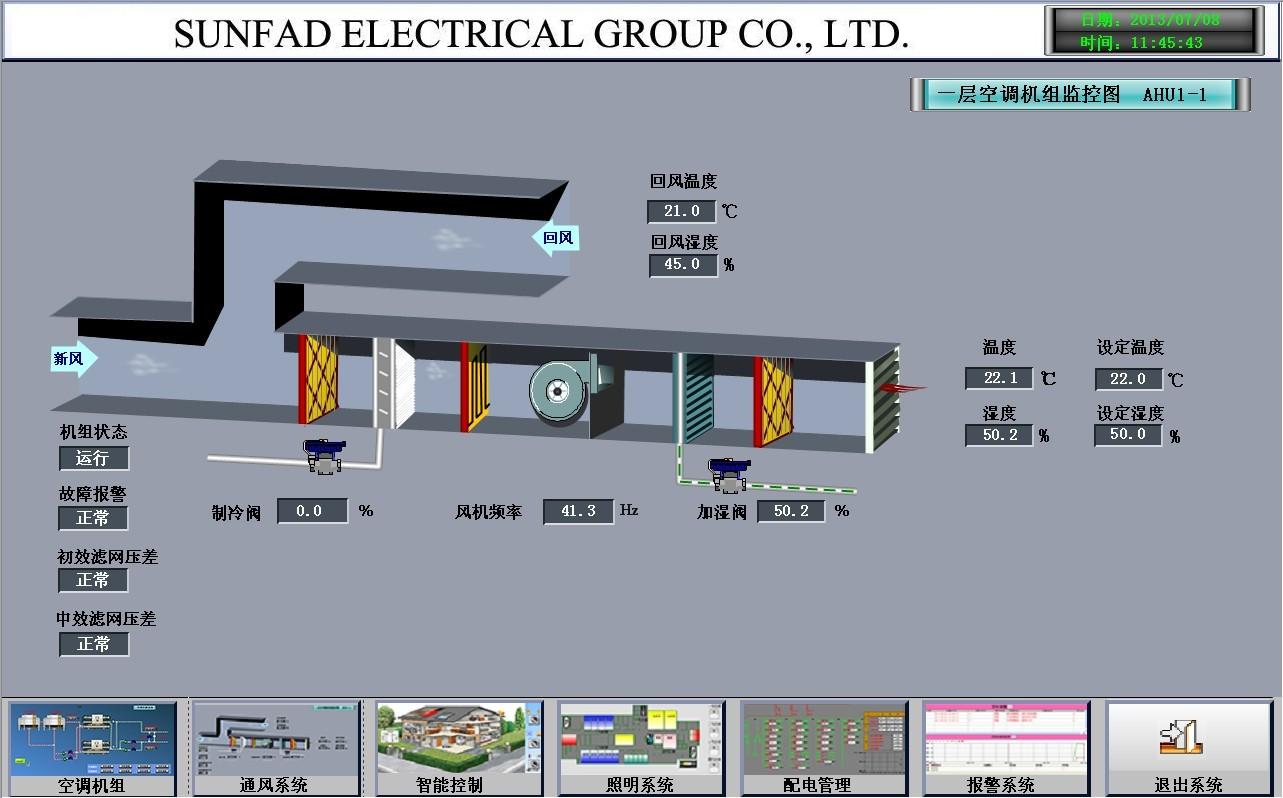

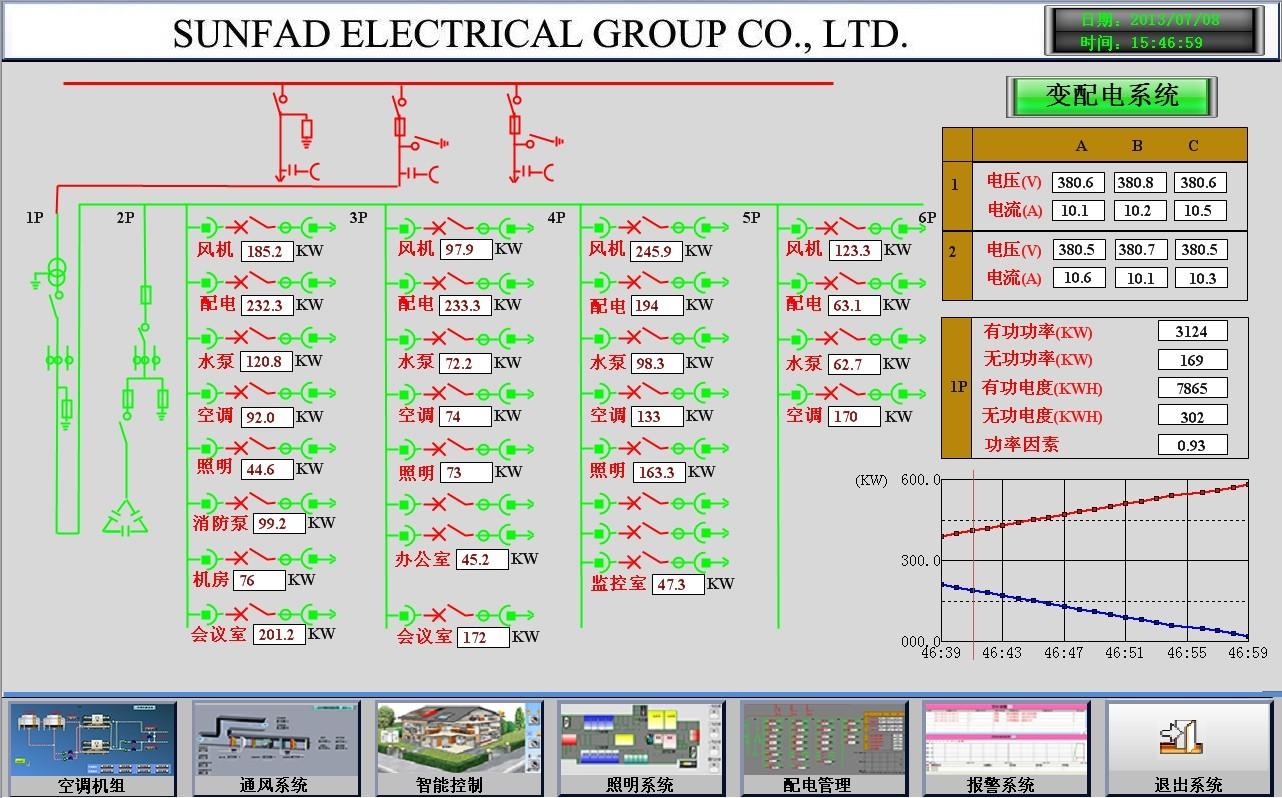

Software(Will be developed by our group compamy according to the client's requirement):

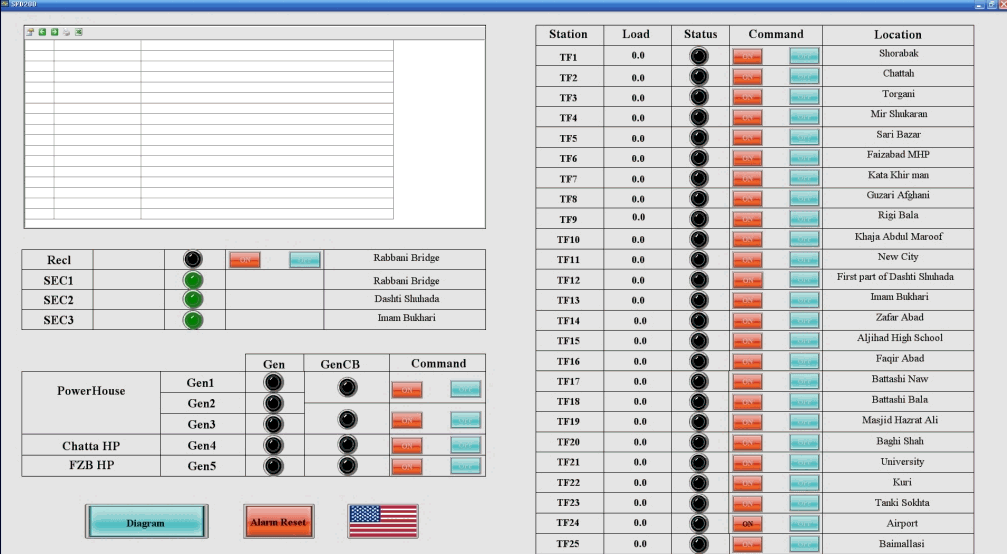

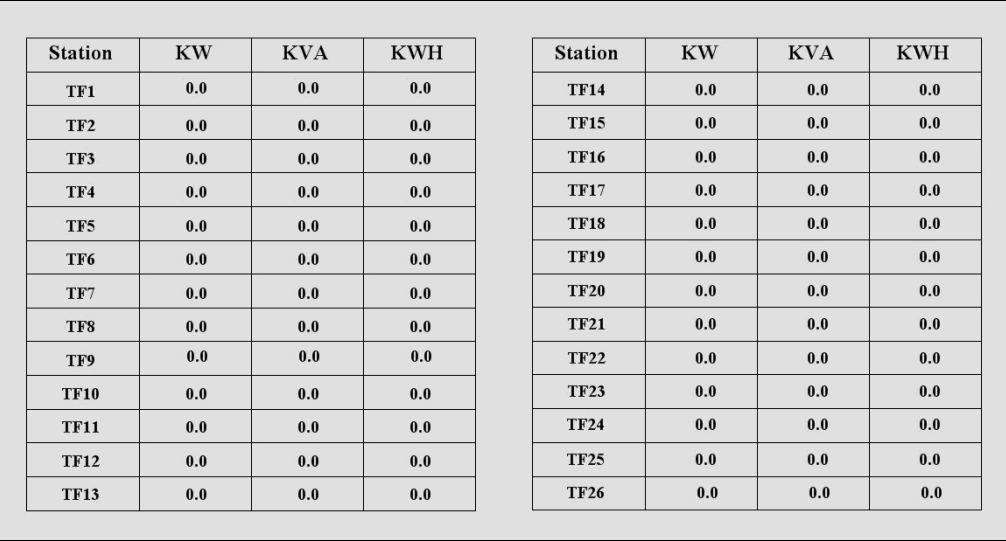

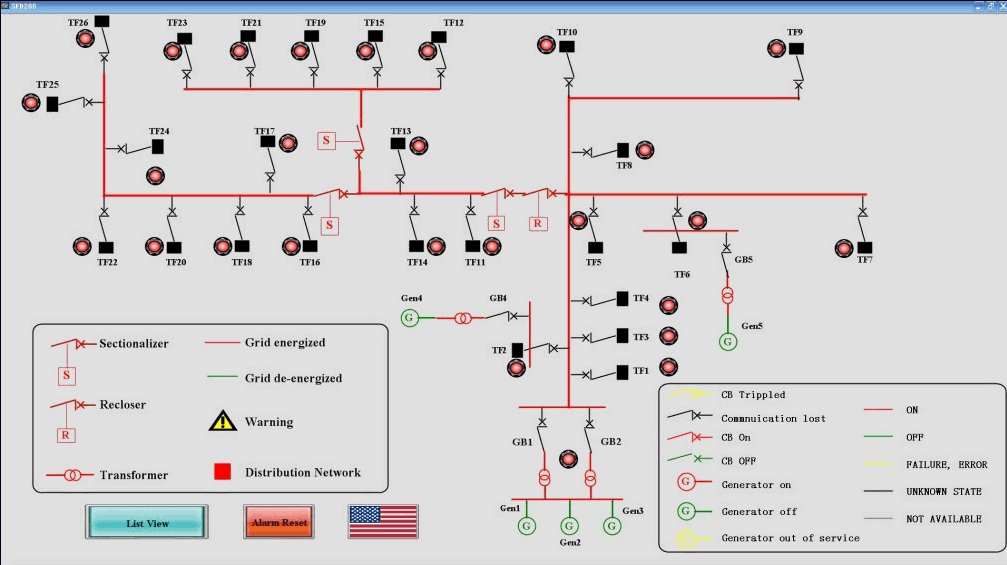

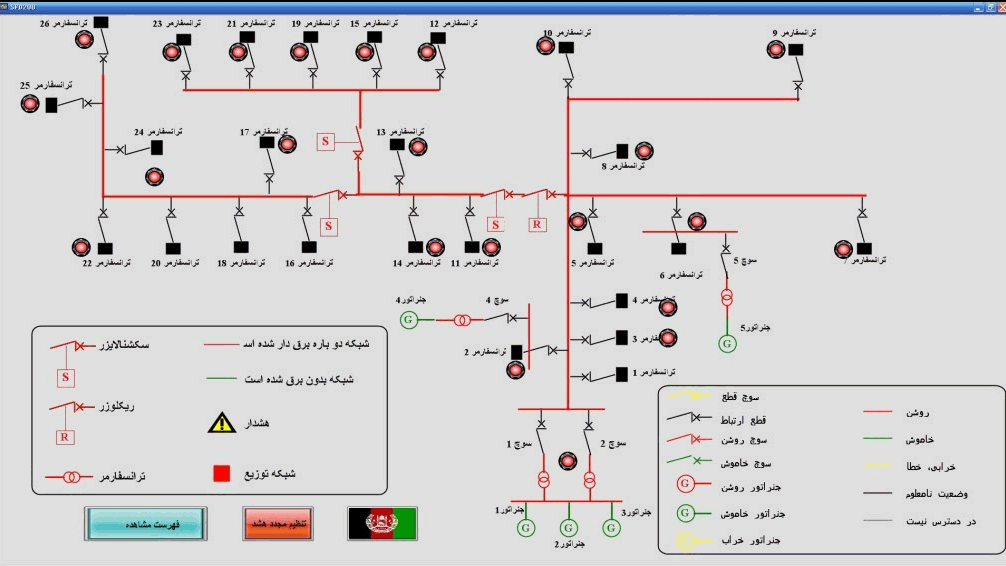

Sample 1:

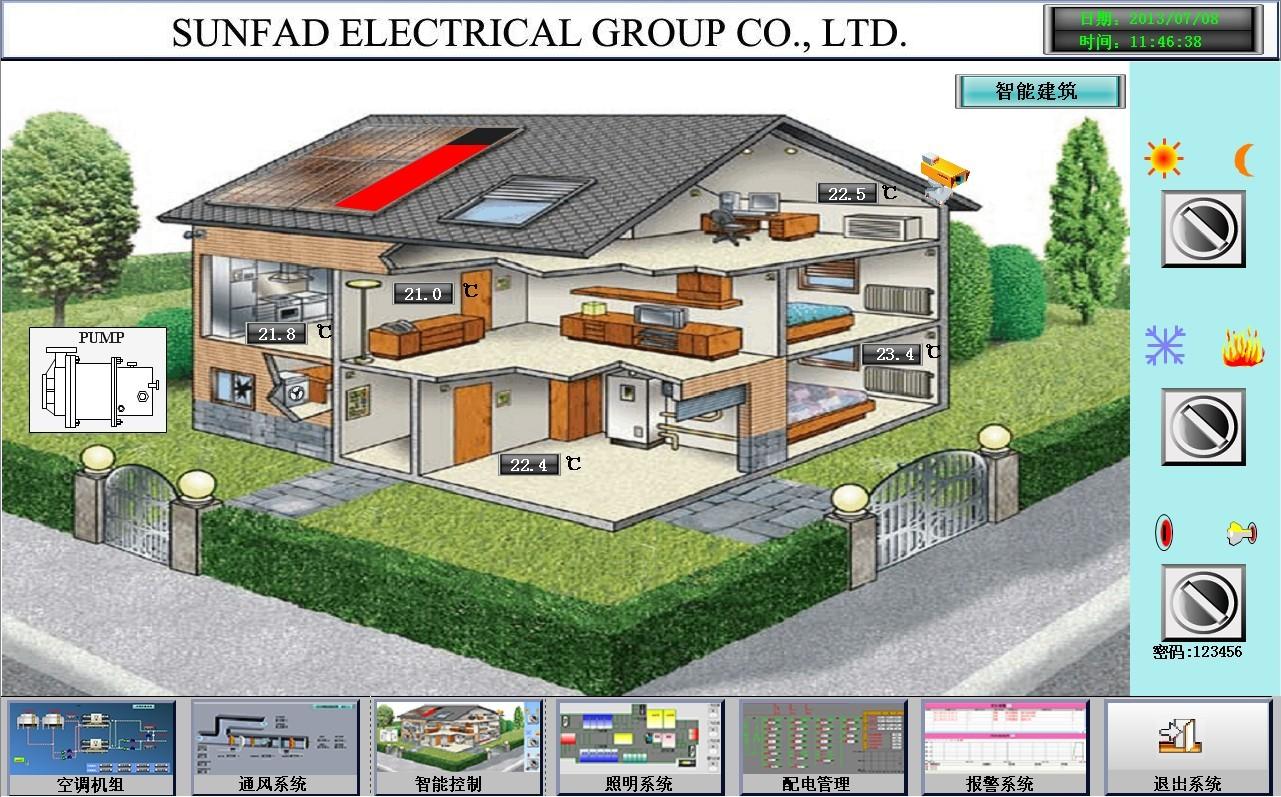

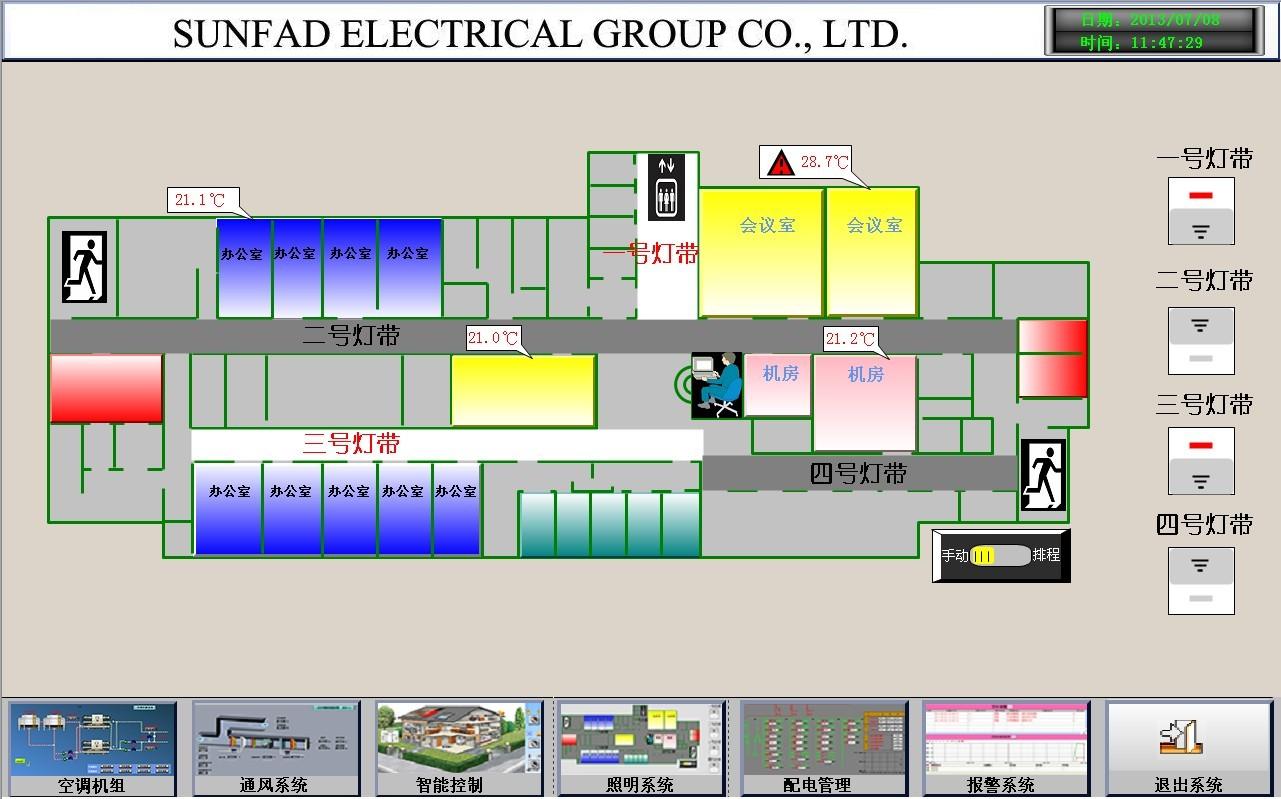

Sample 2:
