Metal Cabinet Combination



1. Technical Data

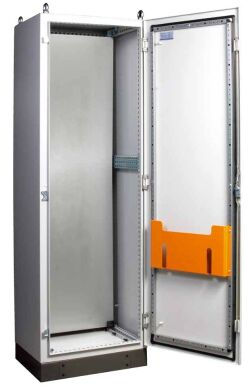

CME6K Metal floor standing cabinets comprise a 9-folded profile structure, un-welded at the top and bottom of the frame, with removable screws in vertical profiles for strength and versatility with the cabinets. Thermosetting epoxy polyester powder coating in textured RAL 7035.

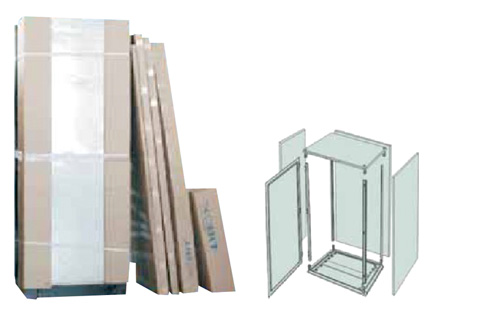

Components
1. Prolfiles components/(model:F): hinged uprights, panel mounts and locking elements assembled.
2. Top cover and base/(Model:TCB): welded top frame, welded base, mounting plate fixing support.
3. Back door and front door (Model:FBD): plain door with lock, plain back panel.
4. Mounting Plate(Model:MP)
5. Side Panels(Model:SP): 2pcs side panels with accessories.

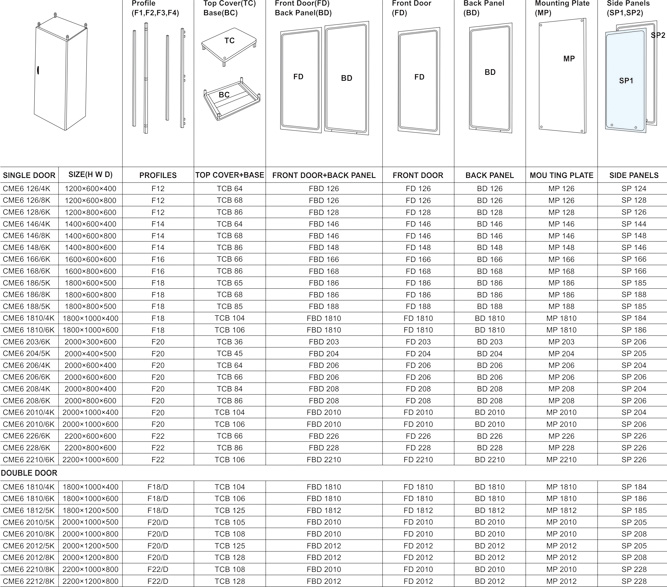

2. Specifications
